Passenger Elevator



The modern passenger lift is a simple, safe, and convenient means of transportation within a building, designed to provide smooth and comfortable vertical movement for passengers. Passenger elevator capacity is generally selected according to the available floor space, building structure, traffic requirements, and the number of people expected to use the lift. These elevators are suitable for residential buildings, commercial complexes, offices, hospitals, hotels, shopping centres, and other modern infrastructure. Generally, passenger elevators are available in typical capacities ranging from 4 to 26 passengers, with speeds varying between 0.5 Meter/sec to 2.5 Meter/sec depending on the building height and application. Our passenger lifts are designed with spacious and comfortable cabins, smooth acceleration and deceleration, reliable safety systems, and efficient automatic controls to ensure a safe and pleasant travelling experience. With modern design, durable components, low-noise operation, and advanced safety features, these lifts provide dependable performance and are an ideal solution for buildings requiring efficient and comfortable passenger transportation.

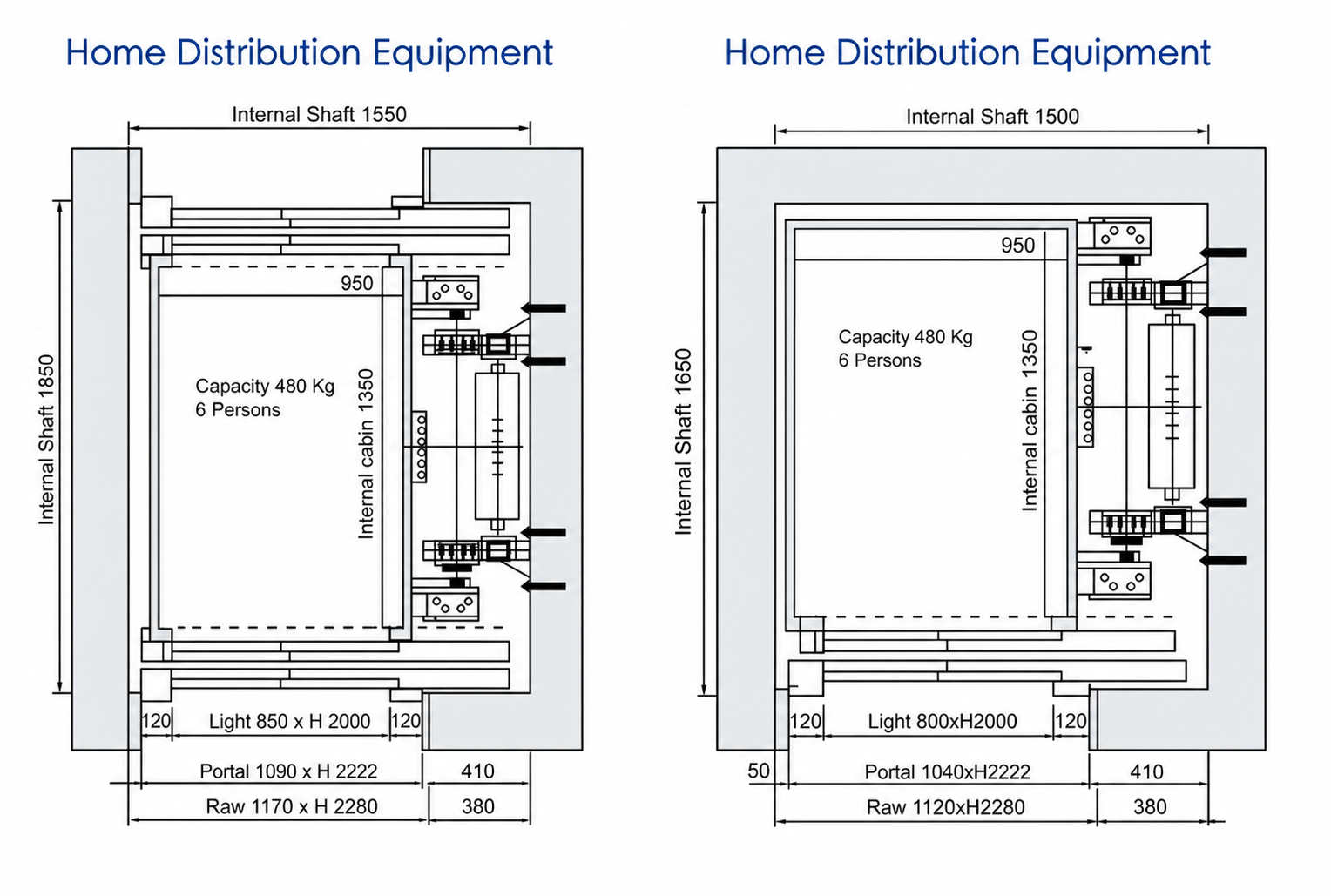

Dimensions

Load Car-Inside Lift-Well Entrance Machine Room Speed
Mps
PIT
Depth
Over
Head
Persons Kg. Width Depth Width Depth Width Depth
4 272 810 920 1200 1350 700 1650 3500 Up to 1.5 1600 4800
5 340 1150 835 1600 1350 700 1600 3350
6 408 1150 960 1600 1525 700 1600 3500
8 544 1300 1100 1800 1800 800 2250 4100 Over 1.5 2500 6700
10 680 1350 1300 1800 2000 800 3300 4500
13 884 2000 1100 2500 1900 900 4000 4400
16 1088 2000 1300 2500 2100 1000 4000 4600
20 1360 2000 1550 2500 2400 1000 4000 4900

Engineering behind every ride

Every elevator we build is backed by precision engineering, from the machine room to the control unit — designed for smooth, reliable performance floor after floor.

Machine

Geared or Gearless-fitted in the Machine Room on I-Beams.

Normal Loads

4 Passenger (272 Kgs.) to 26 Passenger (1768 Kgs.)

Speed

Low Rise: (Up to 6 floors) – 0.65 to 1.0 meter/second.

Mid Rise: (Up to 12 floors) – 1.0 to 1.6 meter/second.

High Rise: (12 Floors & Higher) – 1.6 meter/second.

Control Unit

Microprocessor based control unit is fitted in the Machine Room.

Drive

Variable Voltage Variable Frequency drive fitted in the control unit with open & closed loop operation.

Doors

Automatic Center / Telescopic Doors or Manual Imperforated and Telescopic doors.

Passenger Elevator Design & Specifications

Our passenger elevators are designed to provide safe, comfortable, and efficient vertical transportation for residential, commercial, and institutional buildings. The elevator systems are engineered with carefully planned shaft arrangements and cabin dimensions to make the best use of available space while ensuring smooth and reliable operation. With capacities ranging from 4 to 26 passengers and different speed options, these elevators can be customized according to building height, passenger traffic, and specific requirements. Modern safety features, automatic controls, smooth acceleration and braking, and durable components ensure a comfortable travelling experience. Our passenger elevators combine advanced technology, dependable performance, and contemporary design, making them an ideal solution for modern buildings.

Advantages

Beyond safe and reliable rides, every Sara Elite installation is built to save power, meet code and make the most of the space you have.

Energy Efficient

Use of variable frequency drives ensures low consumption of electricity and thus, power saving. Auto light ON & OFF, use of LED lights results in immense saving of power.

Standardization

All lifts are designed as per IS Specifications & as per the lift directives in force.

Comfort

Jerk Free & Smooth Ride.

Space Optimization

With Sara Elite Elevators Electric lift, it is no longer very critical that needs to be considered when deciding to install an Elevator with or without Machine Room. Space-Optimization is guaranteed by efficient design.
